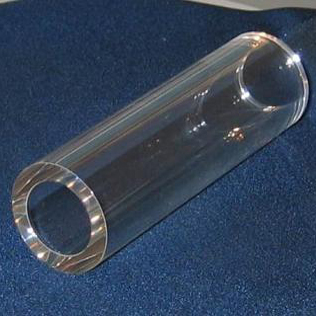

Sapphire tube
- Product Description
High strength, high hardness, wear resistance, high temperature resistance, corrosion resistance, high, 220nm from 5500nm to nearly ultraviolet light to the width of infrared wavelength, the window is excellent performance and optical element materials.
■Typical Applications:
Pumps, Light Pipes, Spacers, Insulators, Wear Applications
■Specification and Technical Index
Item
Outside Diameter
Height
Inner diameter
Size
Φ20.00 ~ Φ200.00
10.00~ 250.00
Φ10.00 ~ Φ180.00
Tolerance
0.004 ~ 0.05
+/-0.01
0.004 ~ 0.06
Surface quality: S/D40/20
■Material
Synthetic sapphire
